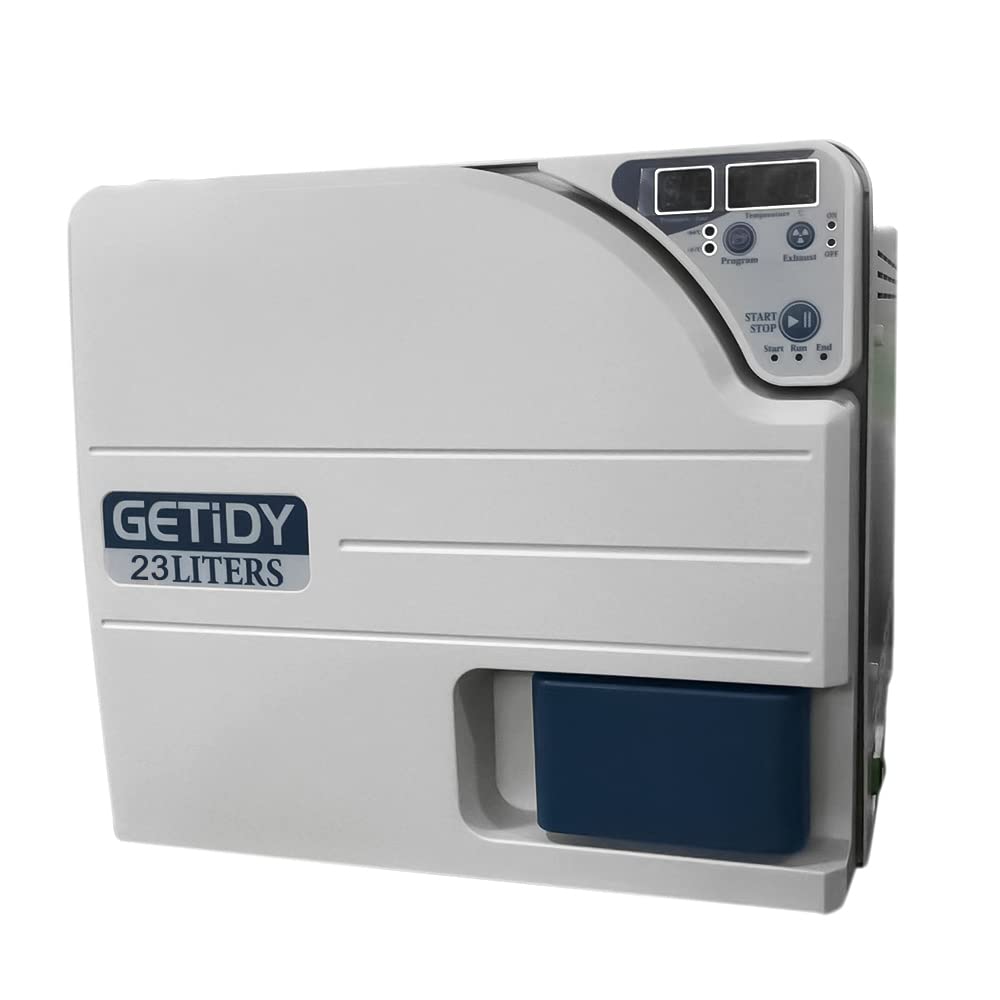

23L Automatic Class N High Temperature Pressure Vacuum Steam Sterilizer Stainless Steel Autoclave Machine with Double Control Lock System JC-23

Specification 1.1 Chamber size(stainless steel SU304): 23 liter(Φ250mmX450mm) 1.2 Machine size: 23 liter(W:385mm H:365mm D:575mm) 1.3 Power: AC 110/1200W/11A；AC 220/1400W/6.3A 1.4 Sterilization temperature/sterilization pressure: 121℃-1.2bar(0.012Mpa) 134℃-2.2bar(0.022Mpa) 1.5 Sterilization time: 25Min（121℃） 6Min（134℃） 1.6 Lock system: Double control with electric and mechanical lock 1.7 Guard against dry-combustion 1.8 Safety: Over-heat protection Safety valve 1.9 Machine weight: 23 liter(G.W:33.8kg，N.W:32.3kg) Packing List: Machine *1 Tray rack *1 Tray *3 Tray holder*1 Fuse *2 Drain tube *1 Measuring cup *1 Power cord *1 Instructions *1 Warning: 6.1 Do not open the door of the sterilizer during operation and working! 6.2 Every time using needs minimal distilled water 1000ml. 6.3 In case of emergency, please disconnect the power immediately. 6.4 If there has leakage from the door, Please adjust the tightness to a proper level. Operation steps: 4.1. Open the door, the LED displays with flashing “Ld”. 4.2. Add 1000ml water with measuring cup to chamber. 4.3. Place the instruments on the trays then put inside chamber. 4.4. “Ld” stop flashing after closed the door. 4.5. Press the “PROGRAM” button to switch and select the sterilization program 134℃ or 121℃ accordingly. 4.6. Press the “START/STOP” button to start.

• 【High Quality】The high temperature cleaning equipment is made under strict quality control and enjoy long service life,all details is perfect for lab home salon and use.
• 【High Temperature Sterilization】Two sterilization temperature modes of 121℃ and 134℃ are available.
• 【Pressure Gauges】The autoclave is equipped with a pressure gauge on the outside, which allows real-time observation and detection of internal pressure values.
• 【Safety Equipment】Avoid overheat protect device: when inter temperature overheat, power break electric current automatically.
• 【Adjustable Pressure】Pressure adjustment: adjust the inter pressure, if over standard value automatic vent. There is no need to worry about any safety hazards.
