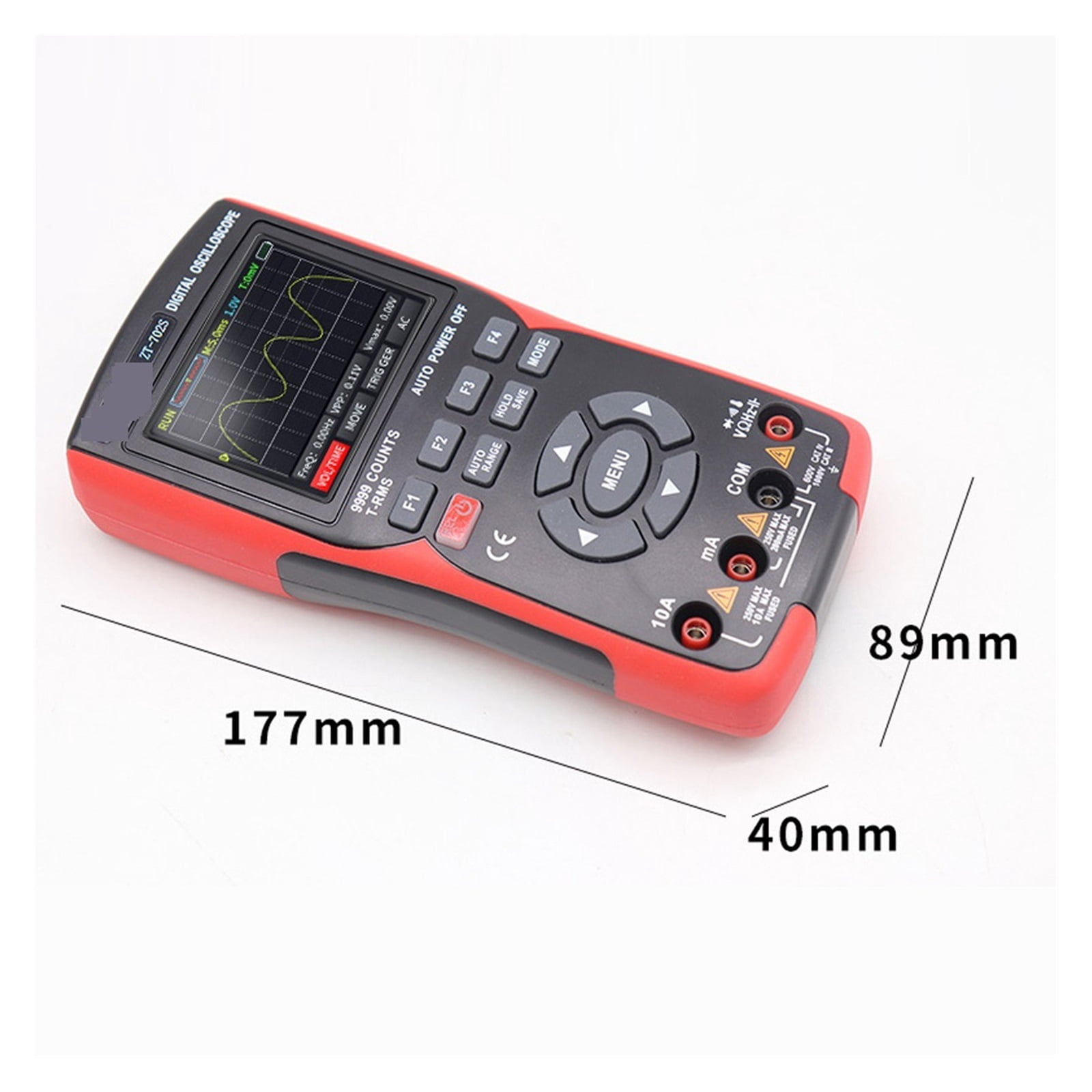

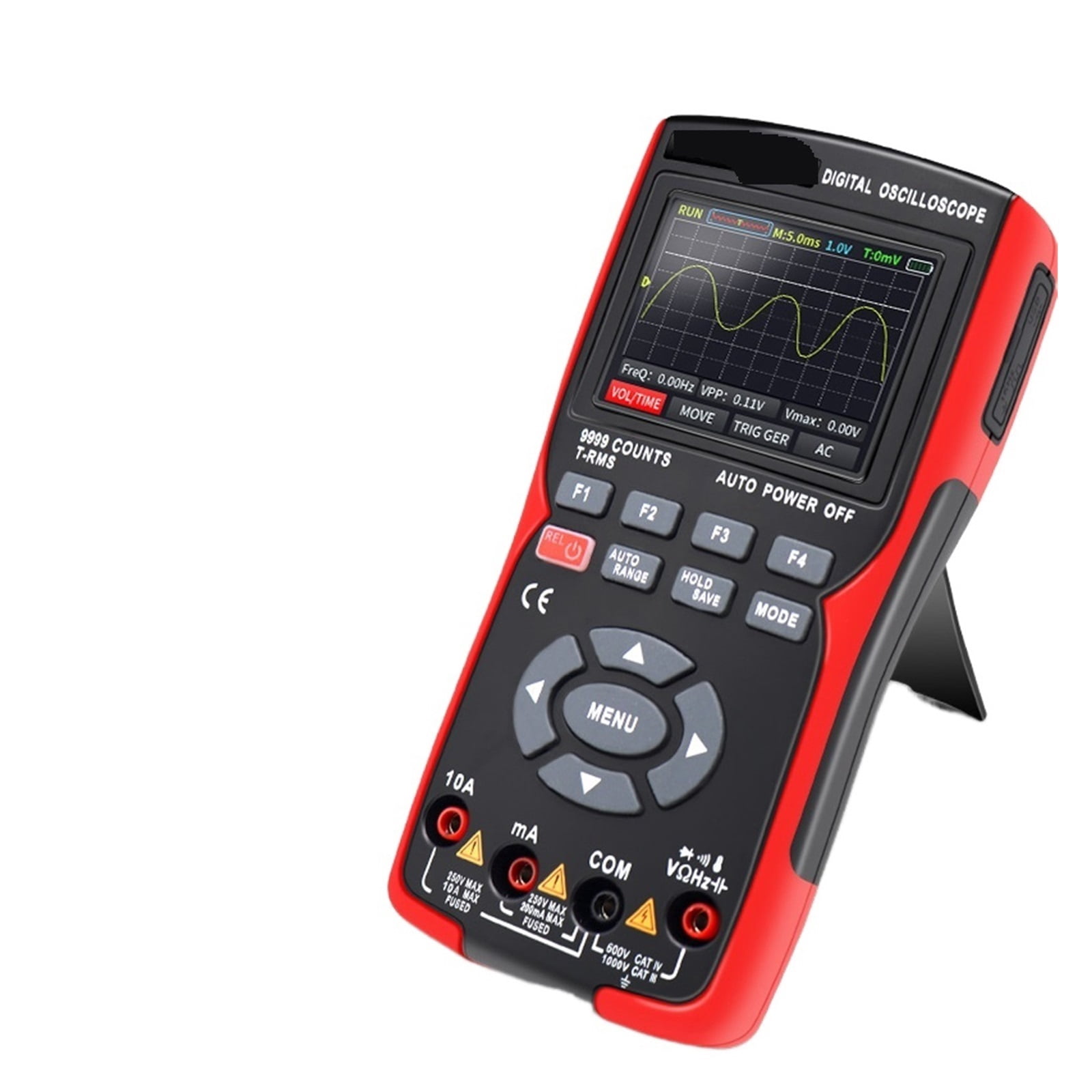

2 In 1 Digital Oscilloscope Multimeter 48MSa/s Sampling Rate 10Mhz Bandwidth 9999 Counts 2.8inch Multimetro ,Professional Designed

<p>This meter is integrated the function of oscilloscope and multimeter, with 2.8inch full-view true color IPS display, with 320*240 resolution, large font for easy data reading, and the brightness adjustable design makes it can applicable to various measurements under complex environment. Support the multimeter functions of AC/DCvoltage, AC/DCcurrent, resistance, capacitance, diode, frequency, and temperature measurement, and on-off test. And the oscilloscope functions of full waveform measurement, with single-channel 10MHz bandwidth and 48MSa/s real time sampling rate. 3 trigger modes: automatic, normal (continuous), and single. Intelligent burn-out proof, automatic measurement manual measurement switchable, automatic shutdown, English and Chinese language adjustable, low battery warming, support computers transmission.</p><p>Features:</p><p>Multifunctional Design: Support full waveform measurement, with single-channel 10MHz bandwidth and 48MSa/s real time sampling rate. 3 trigger modes: automatic, normal (continuous), and single. Intelligent burn-out proof, automatic measurement manual measurement switchable, automatic shutdown, English and Chinese language adjustable, low battery warming, support computers transmission.</p><p>Automatic Measurement: Automatically identify and adjust the waveform amplitude and time base, and display the matched waveform on the screen.</p><p>Manual Measurement: Manually set the predicted waveform voltage, time base, cursor position, trigger, coupling mode, probe attenuation and other parameters; observe the waveform and read the related measurement values.</p><p>Waveform Storage and Review: The oscilloscope will automatically save the current measured waveform data in the form of pictures with running numbers saved in the memory. Connect the oscilloscope to the computers by connecting to the TYPE-C data cable, click on the USB disk, open the picture folder to access, or download the waveform to the computers in a secure location for more convenient to back up and analyze.</p><p>Automatic Shutdown: Automatic </p><p></p><p>Specifications:</p><p>Name: Oscilloscope Multimeter</p><p>Material: ABS + TPE</p><p>Battery: 1 * built-in 2000mAh battery (not included)</p><p>Display (LCD): 9999 Counts</p><p>Ranging: Auto/Manual</p><p>Material: ABS+TPE</p><p>Update Rate: 3 Times/Second</p><p>Ture RMS: yes</p><p>Data Hold: yes</p><p>Backlight: yes</p><p>Low Battery Indication: yes</p><p>Auto Power Off: yes</p><p>DCVoltage: yes</p><p>AC Voltage: yes</p><p>DCCurrent: yes</p><p>AC Current: yes</p><p>Resistance: yes</p><p>Capacitance: yes</p><p>Frequency: yes</p><p>Temperature: yes</p><p>Diode: yes</p><p>Continuity: yes</p><p>Temperature measurement: -20 to 1000/-4 to 1832</p><p>Operating Temperature: 0~40</p><p>Operating Humidity: &lt;75%</p><p>Storage Temperature: -20 to 60</p><p>Storage Humidity: &lt;80%</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Material: The housing is made of ABS and TPE material, with double injection molding and reinforced structure, fallproof and impact resistant.

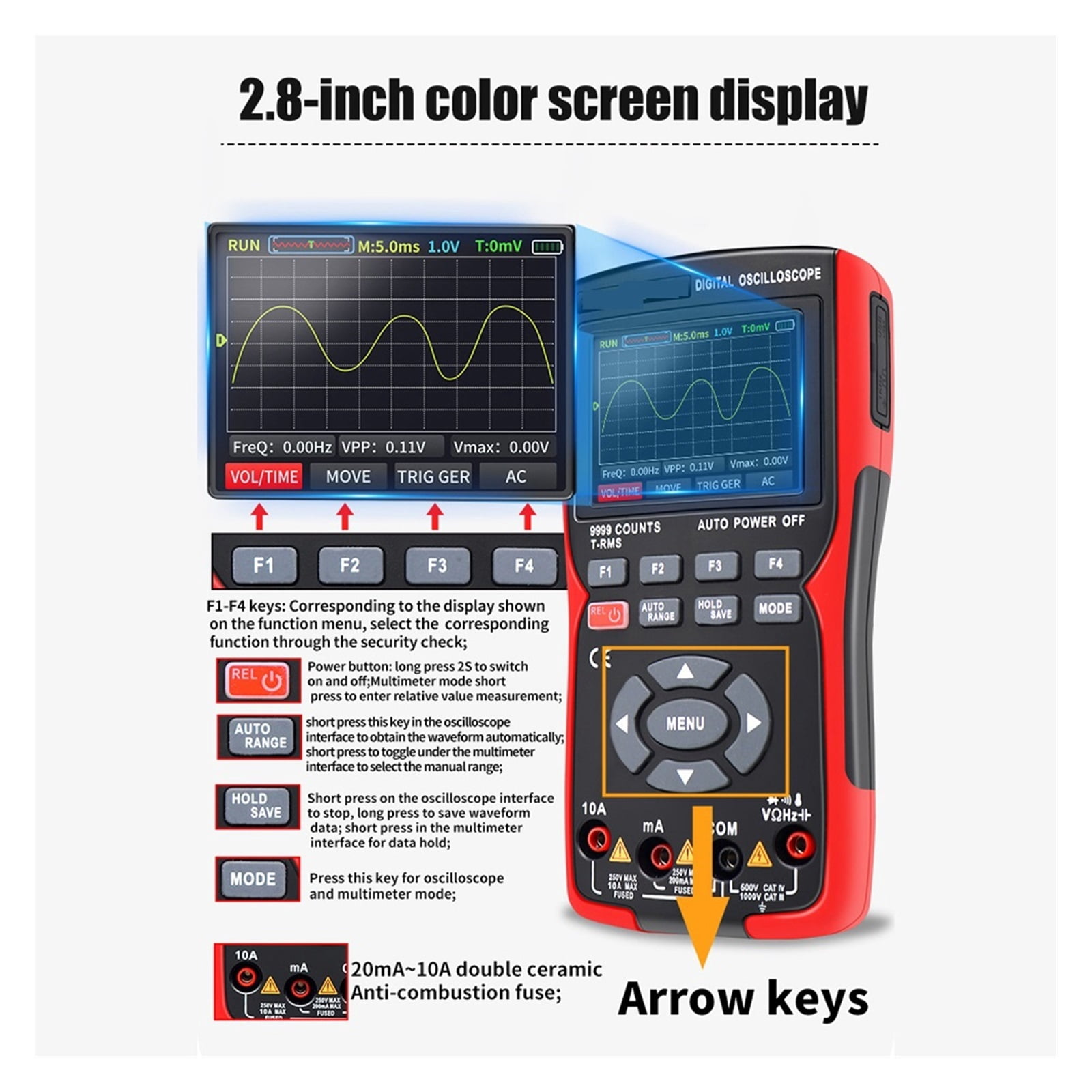

• 2.8inch IPS Color Display: 2.8inch full-view true color IPS display, with 320*240 resolution, large font for easy data reading, and the brightness adjustable design makes it can applicable to various measurements under complex environment.

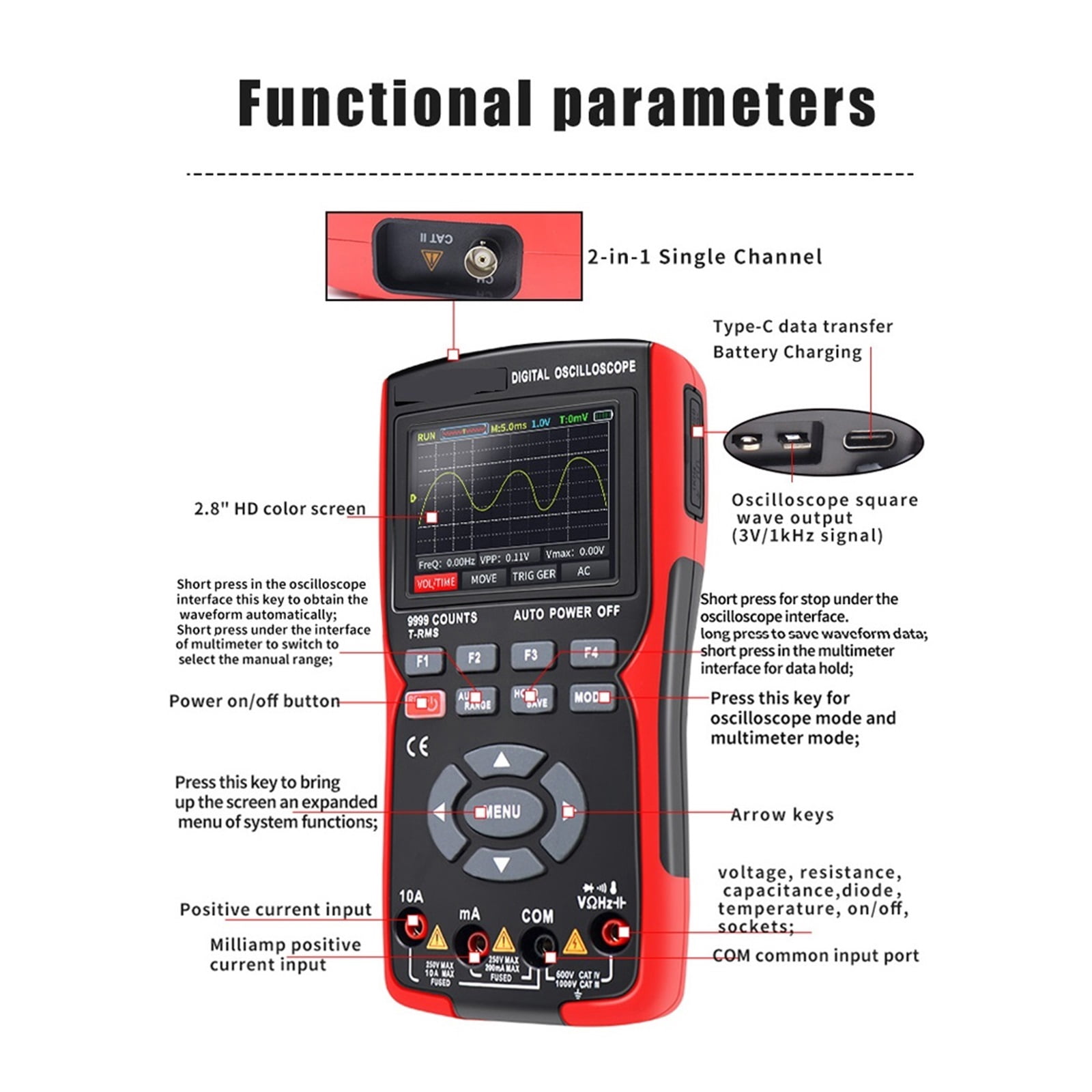

• 2in1 Design: Support oscilloscope and multimeter dual modes switching. The oscilloscope interface automatically obtains the measurement waveforms, and the multimeter interface switches to select the manual ranges.

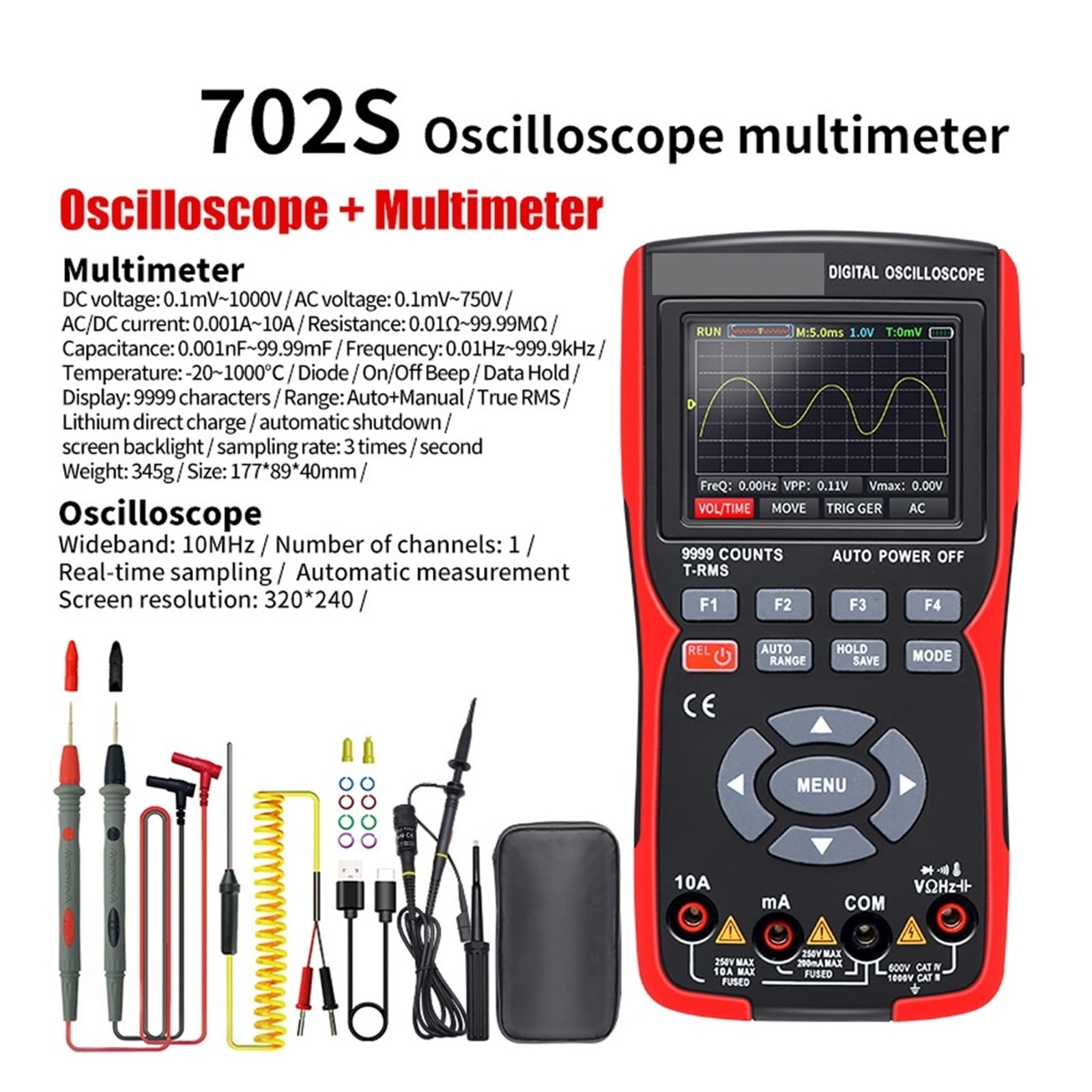

• Multimeter Function: Support AC/DCvoltage, AC/DCcurrent, resistance, capacitance, diode, frequency, and temperature measurement, and on-off test.
• Oscilloscope Function: The oscilloscope will automatically identify the waveform type (sine or square wave) and adjust the control method so as to accurately display the waveform of the input signal.
